HS26 The Original Stick Meter

  • Connects directly to any accessory head
  • Microamps DC for flame diodes
  • 400 AAC with included clamp
  • High voltage alert
  • Safe one handed testing

The HS26 is the "Original" Stick Meter and is packed with the portability, toughness and modular expandability HVACR professionals expect. This slim-shaped digital multimeter fits easily in your pocket or on your belt in the included case. Features most of the electrical parameters you use everyday including microamps DC for flame rectifier diode tests and capacitance for motor-run and motor-start capacitors. It’s a manual ranging meter and features a rugged ABS plastic housing with an O-ring to block contaminants, MAX hold, hi-voltage and continuity LEDs and beepers, and auto power-off (APO) to conserve battery life.

The HS26 is smaller, simpler and more rugged than its bigger brothers, and still works with all Fieldpiece accessory heads. All Fieldpiece accessory heads slide on the top, enabling the user to test a wide variety of parameters. All this plus the removable tip test leads make safe one-handed testing a snap.

  • Modular Expandability
  • 400AAC
  • Microamps DC for flame rectifier diode testing
  • Capacitance
  • High Voltage and Continuity Indicators
  • MAX and Data HOLD
  • Silicone Leads with Detachable Probe Tips
  • Rugged ABS case with O-ring to block contaminants
  • Auto power-off (APO) to conserve battery life
  • Manual ranging for safer testing

(HS26)

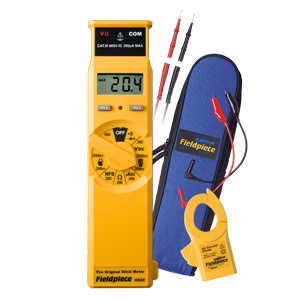

HS26 - The Original Stick Digital Multimeter

WHAT'S INCLUDED

  • The Original Stick Digital Multimeter - HS26
  • 400A Amp Clamp Accessory - ACH4
  • Deluxe Silicone Test Leads - ADLS2
  • Short Alligator Lead Extensions - ASA2
  • Full-Size Meter Case - ANC7
  • 9-Volt Battery (installed)
  • Operator’s Manual

Download Full Operators Manual

SPECIFICATIONS

  • Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
  • Overrange: "OL" mark indication.
  • Auto power off: approx 60 minutes.
  • Operating environment: 32°F to 122°F at <70% R.H.
  • Storage temperature: -4°F to 140°F, 0 to 80% R.H. with battery removed.

Accuracy:

  • Specifications good in ambient conditions of 73°F ±9°F, <75% relative humidity.
  • Temperature Coefficient: 0.1×(specified accuracy) per °F. (32°F to 64°F, 82°F to 122°F).
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
  • Battery life: 150 hours typical with carbon zinc, 300 hours typical with alkaline.
  • Accessories: 400AAC current clamp, one pair test leads, one pair alligator clips, carrying case, 9V battery (installed), and operating instructions.
  • AC Volts (50Hz - 500Hz) Ranges: 200mV, 2000mV, 200V, 600V
  • Resolution: 0.1mV
  • Accuracy: ±(1.2% rdg + 3 dgts) ±(2.0% rdg + 5 dgts) on 600V range
  • Input impedance: 1MΩ
  • Overload protection: 600VDC or AC rms, 600VDC/AC rms 15 sec on 200mV range
  • Transient protection: 6kV for 10μ sec

Diode Test

  • Test current: ∼1mA
  • Accuracy: ±(1.5% rdg + 3 dgts)
  • Open circuit volts: 3.0VDC typical
  • Overload protection: 500VDC or AC rms

Continuity

  • Audible indication: Less than 100Ω
  • Visual indication: Green LED will be on continuously.
  • Response time: 100ms
  • Overload protection: 500VDC or AC rms

Capacitance (MFD)

  • Range: 200μF
  • Resolution: 0.1μF
  • Test frequency: 42Hz
  • Test voltage: <3.0V
  • Accuracy: ±(3% rdg + 5 dgts)
  • Overload protection: 500VDC or AC rms

DC Current

  • Ranges: 200 μA
  • Resolution: 0.1μA
  • Accuracy: ±( 1.0% rdg + 2 dgts)
  • Voltage burden: 1V
  • Overload protection: 500VDC or AC rms

DC Volts

  • Ranges: 200mV, 2000mV, 200V
  • Resolution: 0.1mV
  • Accuracy: ±(0.5% rdg + 1 dgt)
  • Input impedance: 1MΩ
  • Overload protection: 600VDC or AC rms,
  • 600VDC/AC rms 15 sec on 200mV range
  • Transient protection: 6kV for 10μ sec

Resistance

  • Ranges: 200Ω
  • Resolution: 0.1Ω
  • Accuracy: ±(1.0% rdg + 3 dgts)
  • Open circuit volts: 3.0VDC typical
  • Overload protection: 500VDC or AC rms

SKU HS26
Brand Fieldpiece
Shipping Weight 0.7500kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.006000m3
Unit Of Measure ea
