CLEARANCE ITEM  only a couple left - Be quick to secure yours!!

Dual-Port Manometer Accessory Head

ADMN2 - Static Pressure Differential Head

  • Measures duct pressures to balance air flow
  • Suitable for Static Air Pressure, LPG & Natural Gas measurements
  • Resolution down to 0.01" WC for static pressure measurement
  • -60.0"WC to 60.0"WC  & -150.0 to 150.0 mBar selectable ranges
Log Static Pressure differential or individual with this ADMN2  Accessory Head using the HG3 System Analyser. Disable APO for data logging.
Make it Wireless with the EH4W kit!

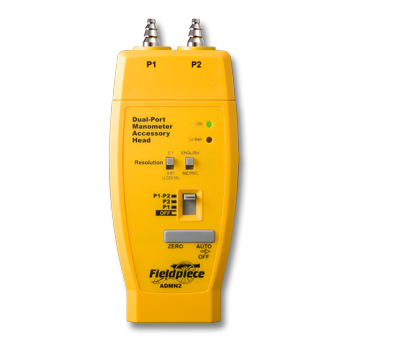

The ADMN2 is a portable dual port manometer accessory head for use with our modular multimeters (DMMs) and instruments. Measures gas pressure, static pressure and pressure differential across Evaporator Coils, Condenser Coils or Filter Banks.
The ADMN2 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. The ADMN2 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.


                                            WHAT'S INCLUDED

ADMN2 - Dual Port Manometer Accessory Head
  • Dual-Port Manometer Accessory ADMN2
  • 2 – 3/16” Tubes with Brass Fittings
  • 2 – 3/16” to 5/16” Tube Adapters - RMA316
  • 9V Battery (installed)
  • Operator’s Manual

Brand Fieldpiece
Shipping Weight 0.7000kg
Shipping Width 0.300m
Shipping Height 0.350m
Shipping Length 0.150m
Shipping Cubic 0.015750000m3
1 - Year Manufacturers Warranty from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
