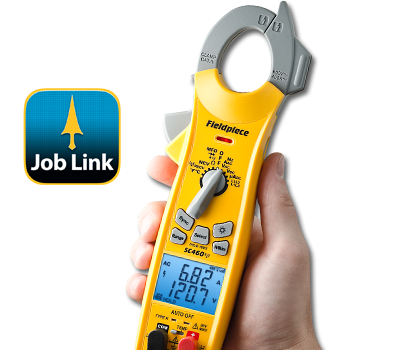

SC460 TRMS Clamp Meter.

The choice meter for Electricians &  HVAC-R Service

A step up from the SC440 Clamp Meter.

Use it your way - as an auto or manual ranging clamp meter

  • Wireless measurements
  • Job Link® System compatible
  • Three phase rotation test
  • Backlit dual display
  • Inrush and True RMS

This top of the line essential clamp meter is designed to read electrical measurements specifically for the HVAC-R professional including phase rotation, True RMS, and Inrush.

Job Link® System Mobile Capability via JL2 Transmitter
Send and save electrical measurements to Job Link® System mobile app via the JL2 long range transmitter for professional reporting.  Plus, calculate power (kW) and system efficiency for in depth understanding of system performance in real world conditions. (SDP2 needed for system efficiency calculations.) To learn more about the Job Link System, click here.

Electrical Testing for HVACR
True RMS readings through the clamp or leads. Inrush current mode to capture starting amps.

Test 3-Phase Power Test
Conveniently test phase rotation without carrying an extra meter or lead.

Rugged Dual Display
Broad temperature range tolerance allows for testing in freezers and on rooftops.

Capacitance
Test questionable motor start and run capacitors. Determine when a capacitor needs to be replaced.

Wireless Testing
Send measurements to the Job Link Mobile App via JL2 transmitter. Or view measurements from other compatible tools (ET2W, EH4W, SC57, LT17AW, SC460, SC660) across the jobsite LIVE.

Magnetic Hanger
Hanging strap flips out to keep the meter locked in place.

Trusted Temp
Reliable temperature in fast changing environments

Plus
Hold/Max/min.
High voltage LED and beeper warning.
 Non contact voltage LED and beeper.
Continuity LED and beeper.
Diode test.
Easy temp cal.
Microamps DC.
Frequency (Hz) through the clamp.
Low ohm range for motor windings.
Read up to 400AAC.
0.01AAC resolution.
Backlit display.
Auto-Power-Off.
NIST traceable.

(SC460)

SC460 - Wireless Clamp Meter

What's Included

  • SC460 Wireless Clamp Meter
  • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
  • ASA2 Alligator Clips
  • 1 ATB1 Type K Thermocouples
  • 1 Velcro Straps
  • 9V Alkaline Battery (not installed)
  • ANC12 Padded Case
  • Operator's Manual


SKU SC460
Brand Fieldpiece
Shipping Weight 0.7500kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.005250m3
Unit Of Measure ea
2 Years from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
