HS36 Expandable True RMS Multimeter

Packed with features HVAC-R Techs need & use every day

  • Works with all accessory heads
  • Non-contact voltage - built-in Volt stick
  • MIicroamps DC for flame diodes
  • 400 AAC with included Clamp Accessory
  • Temperature up to 535 degrees C
  • Lead storage

Our top of the line Stick Meter, the HS36 includes the ranges you use everyday for HVAC/R field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features.  This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVAC-R field service.

The HS meter series is unlike any other found in HVAC-R. We incorporate a number of safety features, both those you can and can’t see, into our meters.  In addition, the HS series accepts modular test instrument accessory heads, so you have more testing capabilities without buying a lot of expensive instruments.  And it's packed with the features HVAC & R technicians need:

  • Non-contact Voltage
  • High Voltage and Continuity Indicators
  • Microamps
  • Capacitance
  • MIN/MAX
  • Temperature
  • Silicone Leads with Detachable Probe Tips
  • Rugged ABS case with rubberized bumpers
  • Built-in magnetic hanger allows you to test with one hand or no-hands
  • Blue Back-Light
  • Ergonomic shape fits naturally in your hand
  • Auto power-off (APO) to conserve battery life

(HS36)

HS36 - True RMS with Backlight

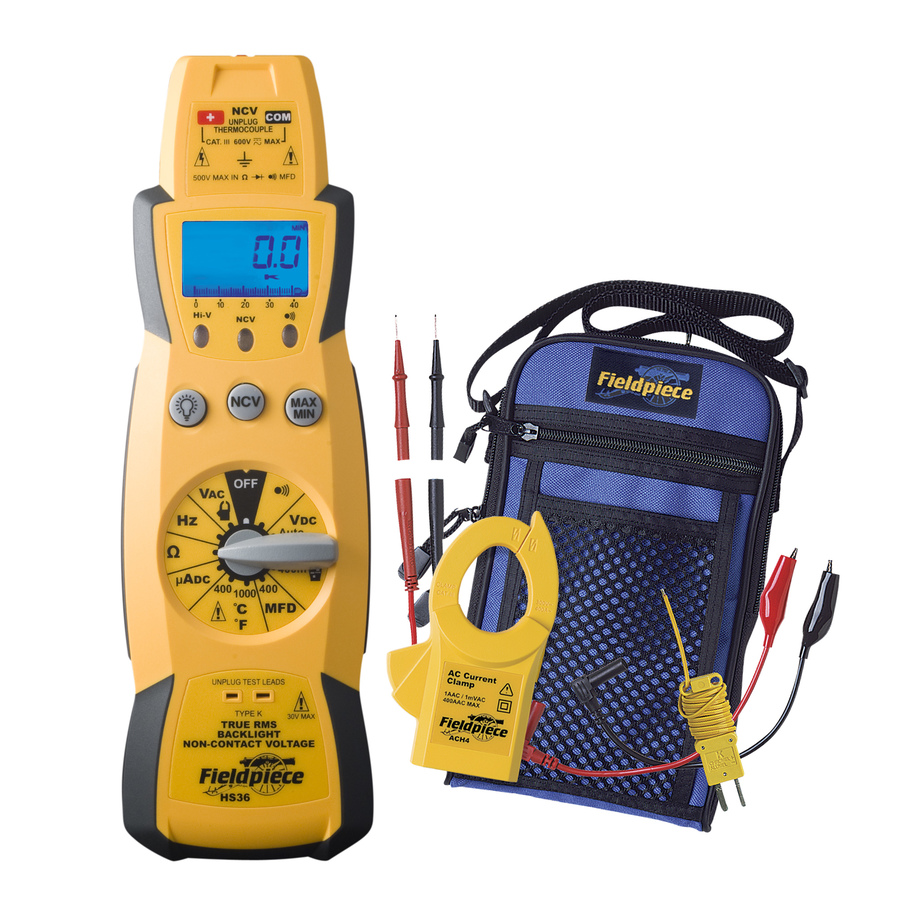

WHAT'S INCLUDED

  • Expandable True RMS Stick Multimeter with Backlight - HS36
  • 400A Amp Clamp Accessory - ACH4
  • Deluxe Silicone Test Leads - ADLS2
  • Short Alligator Lead Extensions - ASA2
  • Deluxe Meter Case - ANC1
  • 9-Volt Battery (installed)
  • Operator’s Manual

Download the full Operators Manual

SPECIFICATIONS

  • Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999.
  • Analog bar graph: 41 segments with measurements 20 times per second.
  • Range (RNG): Manual ranging mode (HS35) Overrange: "OL" mark indication.
  • Auto power off: 30 minutes.

​​Operating environment: 32°F to 122°F at <70% R.H.

  • Storage temperature: -4°F to 140°F, 0 to 80% R.H. with battery removed.

Accuracy:

  • Specifications good in ambient conditions of 73°F ±9°F, <75% relative humidity.
  • Temperature coefficient: 0.1×(specified accuracy) per °F. (32°F to 64°F, 82°F to 122°F).
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
  • Battery life: 300 hours typical with alkaline.
  • Accessories: One pair test leads, one pair alligator clips, k-type thermocouple, 9V battery (installed), and operating instructions.
  • Safety: UL, CE, Cat III 600V, UL3111, IEC1010-1.
  • Temperature Range: -30°F ~ 1000°F Resolution: 0.1°F Accuracy: ±(1°F) 32°F ~ 120°F, ±(1% + 1.5°F) -4°F ~750°F, ±(2% + 4°F) -30°F ~ -4°F, ±(2% + 4°F) 750°F ~ 1000°F
  • Sensor type: K-type thermocouple
  • Overload protection: 60 VDC or 30 VAC rms
  • Continuity Audible indication: Less than 40Ω Response time: 500ms Green LED will be on continuously.
  • Overload protection: 500VDC or AC rms

DC volts Ranges: 400mV, 4000mV, 40V, 400V, 600V

  • Resolution: 0.1mV Accuracy: ±(0.5% rdg + 2 dgt)
  • Input impedance: 560kΩ on V inputs, 10MΩ on mV input
  • Overload protection: 600VDC or AC rms
  • Transient protection: 6kV for 10µ sec

AC volts (50Hz - 500Hz) Ranges: 400mV, 4V, 40V, 400V, 600V

  • Conversion: True RMS (HS36), average (HS35)
  • Crest factor: Less than or equal to 3 (HS36)
  • Resolution: 0.1mV Accuracy: ±(1.2% rdg + 5 dgts) 50Hz ~ 60Hz on 400mV range ±(1.5% rdg + 5 dgts) ±(2% rdg + 5 dgts) on 600V range
  • Input impedance: 560kΩ
  • Overload protection: 600V DC or AC rms
  • Transient protection: 6kV for 10µ sec

​DC current Ranges: 400µA, 4000µA Resolution: 0.1µA

  • Accuracy: ±(1.0% rdg + 2 dgt) Voltage burden: 200mV, (2V on 4000µA range)
  • Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

Resistance Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ

  • Resolution: 0.1Ω Accuracy: ±(1.0% rdg + 4 dgts) on 400Ω to 400kΩ ranges ±(1.5% rdg + 4 dgts) on 4MΩ range ±(3.0% rdg + 5 dgts) on 40MΩ range
  • Open circuit volts: -0.45VDC typical, (-1.2VDC on 400Ω range)
  • Overload protection: 500VDC or AC rms

Capacitance Range: 400µF Resolution: 0.1µF

  • Accuracy: ±(3% rdg + 5 dgts)
  • Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

Frequency Ranges: 4k, 40k, 400k, 4M, 40MHz

  • Resolution: 1Hz Accuracy: ±(0.1% rdg + 3 dgts)
  • Sensitivity: 10Hz ~ 4MHz: > 1Vrms, 4MHz ~ 40MHz: > 2Vrms, <5Vrms
  • Minimum pulse width: > 25ns Duty cycle limits: > 30% and < 70%
  • Overload protection: 500VDC or AC rms

SKU HS36
Brand Fieldpiece
Shipping Weight 1.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.007000000m3
Unit Of Measure ea
Assembled Length 0.350m
Assembled Height 0.100m
Assembled Width 0.200m
1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
