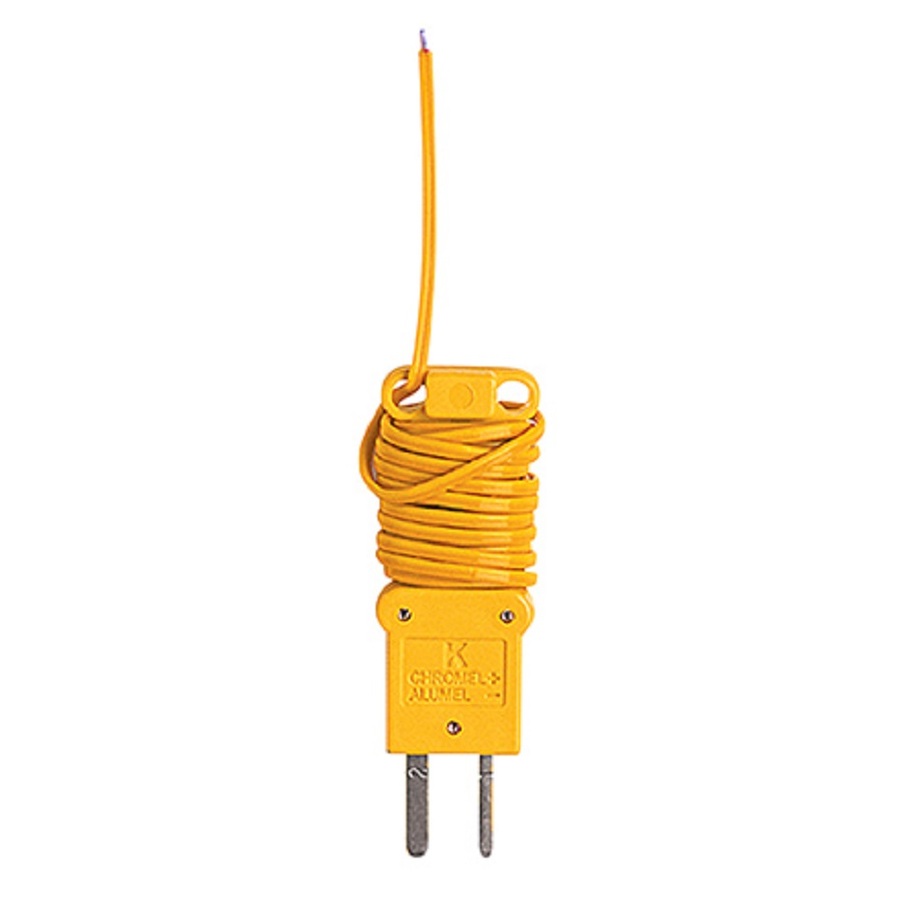

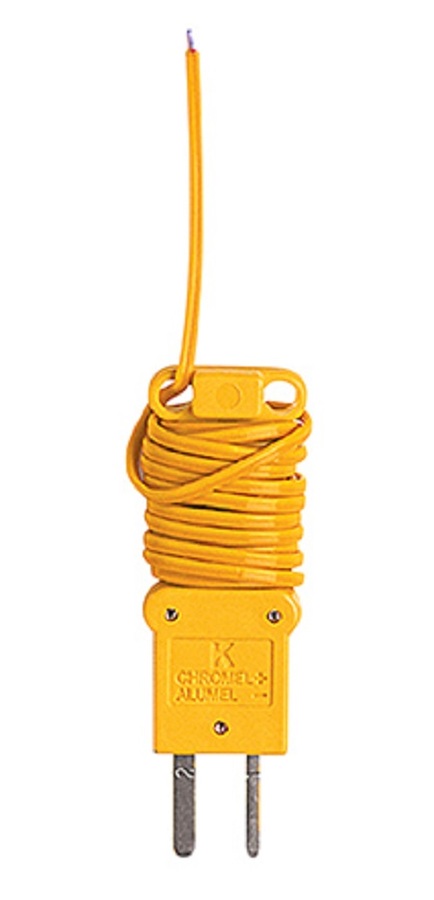

ATB1 - K-Type Thermocouple

The ATB1, K-type bead thermocouple is used to take temperatures of air, surfaces, or liquids up to 400°F. Use the ATB1 for outdoor dry bulb temperatures when finding target superheat. The ATB1 can be used with any of our meters that measure temperature and any thermometer accepting a K-type thermocouple. ATB1 - K-Type Thermocouple

The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab and feed it through one of the eyes. Keep a few of them set at different lengths for fast, job-specific, switching between thermocouples. No more tangled messes in your tool bag.

SPECIFICATIONS

Accuracy: +/- 2°C ; ±0.5°C after field calibration between 0°C to 80°C
Temperature range: -46°C to 204°C
Thermocouple conductors: K-type nickel chromium/nickel aluminum.
Probe insulation: Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 204°C
Plug: K-type thermocouple male mini plug.

(ATB1)

SPECIFICATIONS

Accuracy: +/- 2°C ; ±0.5°C after field calibration between 0°C to 80°C
Temperature range: -46°C to 204°C
Thermocouple conductors: K-type nickel chromium/nickel aluminum.
Probe insulation: Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 204°C
Plug: K-type thermocouple male mini plug.

SKU	ATB1
Brand	Fieldpiece
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.100m
Shipping Cubic	0.001000000m3
Unit Of Measure	ea
Assembled Length	0.100m
Assembled Height	0.100m
Assembled Width	0.100m
