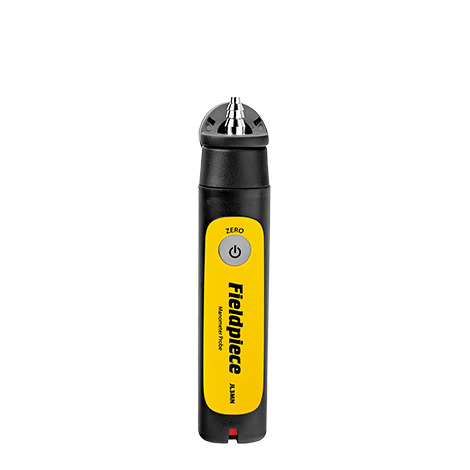

JL3MN - Job Link Bluetooth Manometer

Shorter hoses needed. Fewer tangles.

You’re free to work the way you want.

  • Use for static Air Pressure, LPG or Nat. Gas and Burner draft pressure
  • 300 metres Wireless range
  • Precise magnetic placement makes it more convenient with shorter hoses.
  • Record up to eight readings at once in Job Link App



Totally untethered.

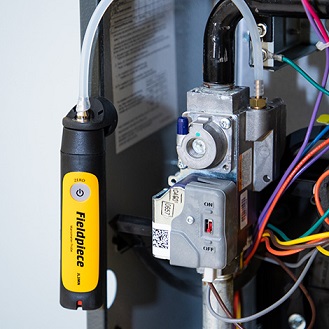

Part of the Job Link® System, the JL3MN Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work.

Versatile and durable.

With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly with the Job Link App.





Logging is activated.. having gas pressure problems...

....... log it with the JL3MN & send it to your customer!



(JL3MN)

What’s Included:

  • (1) JL3MN Manometer Probe
  • (1) ASP2 Static Pressure Probe and Hose
  • (1) Brass Screw Fitting with Extra Hose
  • (1) Slide Gas Adapter
  • (2) AAA Batteries

Specifications

  • Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
  • Compatible Media: Dry, non-corrosive gas
  • Pressure Port: Tube connector for flexible tubing (4.5 to 8mm ID)
  • Units of Measure: inWC, mmWC, mbar, psi, Pa
  • Accuracy and Ranges:
    inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
    mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
    mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
    psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
    Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
  • Maximum Overload Pressure: 321.08 inWC (11.6 psi; 80.0 kPa)
  • Battery Type: 2 x AAA
  • Battery Life: 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed
  • Auto Power Off: 2 hours (APO can be disabled)
  • Wireless Range: 305 metres line of sight – obstructions affect distance
  • Radio Frequency: 2.4 GHz
  • Operating Environment: -10°F to 122°F (-23°C to 50°C) at <75% RH
  • Storage Temperature: -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)

SKU JL3MN
Brand Fieldpiece
Shipping Weight 0.7500kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.001875000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.120m
Assembled Width 0.150m

1 - Year from Date of Purchase

​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
