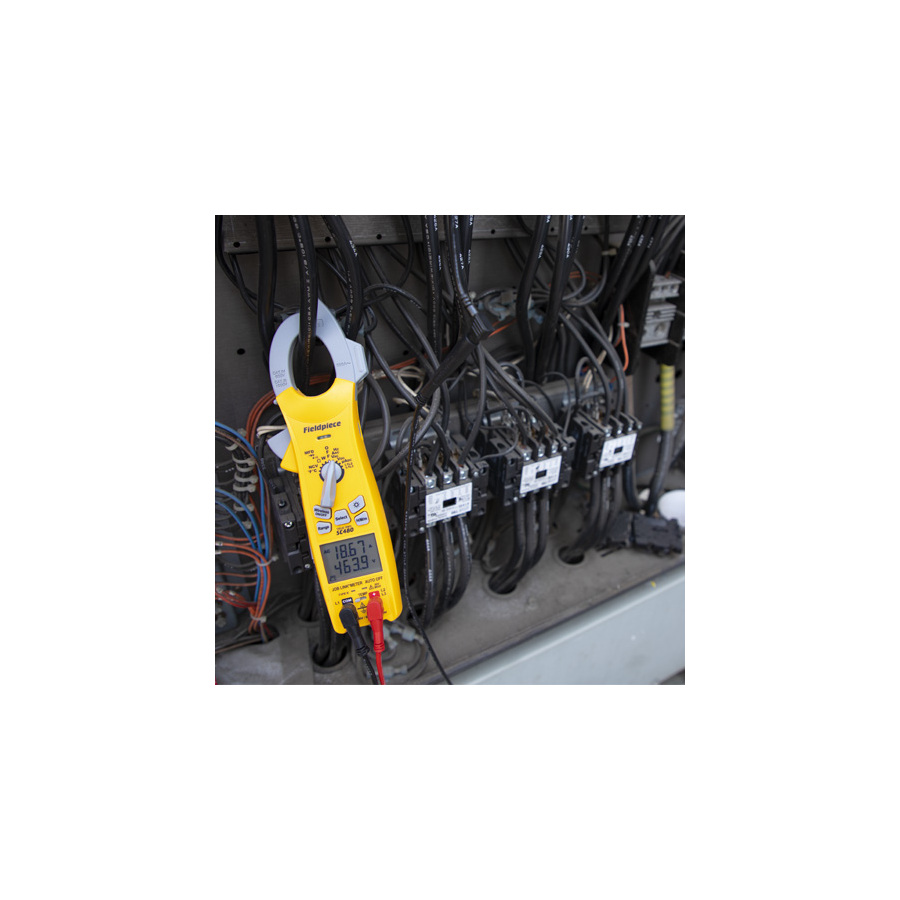

SC480INT  TRMS CAT1V Clamp Meter

with power [kw] range for Electricians &  HVAC-R service



Top-of-the-Line HVACR Meters - Not only do these meters communicate with Job Link, but you can also measure power consumption (kW) to determine system efficiency.

  • Verify 3-phase rotation with just two leads.
  • Take more accurate VAC and AAC readings with True RMS.
  • Filter out noise to get true voltage and frequency with low pass filter.
  • Measures Power (kW) for system efficiency
  • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
  • Indicates 3-phase rotation with two leads
  • Measures start/run capacitors
  • Molex tips reach into power connectors
  • Magnet for mounting meter during use
  • Safety rated CAT IV-600V/CAT III-1000V

Job Link® System Mobile Capability
Send and save electrical measurements to Job Link® System mobile App   Plus, calculate power (kW) and system efficiency for in depth understanding of system performance in real world conditions.

Electrical Testing for HVACR
True RMS readings through the clamp or leads. Inrush current mode to capture starting amps

Test 3-Phase Power Test
Conveniently test phase rotation without carrying an extra meter or lead

Rugged Dual Display
Broad temperature range tolerance allows for testing in freezers and on rooftops



   Watch the Video as Tony shows how this meter works

   Click the Clamp to take you there!



(SC480INT)



What's Included



  • SC480INT Bluetooth Clamp Meter
  • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
  • ASA2 Alligator Clips
  • 1 ATB1 Type K Thermocouples
  • 1 Velcro Straps
  • 9V Alkaline Battery (not installed)
  • ANC12 Padded Case
  • Operator's Manual

Specifications  [ Click to download the full Operators Manual ]

  • Display: 10000 count dual display
  • Backlight: 5 minute duration with auto-off, blue color
  • Overrange: “OL” or “-OL” is displayed
  • Measurement rate: 3.3 times per second, nominal Zero: Automatic
  • Operating environment: 32°F to 122°F (0°C to 50°C) at <70%RH
  • Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
  • Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
  • Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
  • APO (Auto Power Off): Approx. 30 minutes
  • Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • Battery life: 100 hours typical alkaline (No wireless, no backlight)
  • Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
  • Dimensions: 247mm(H) x 79mm(W) x 48mm(D)
  • Weight: Approx. 345g including battery
  • Altitude: Up to 6562 ft (2000m)
  • Overload protection: 1000VDC or 750VAC rms unless otherwise stated
  • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.

Please operate the instrument following all instructions of the operator's manual to avoid impairing the safety of the product.


SKU SC480INT
Model # SC480INT
Brand Fieldpiece
Shipping Weight 0.9000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.007875000m3
Unit Of Measure ea
1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
